Thetford Fridge Power Control Board - N3000/N4000 EU

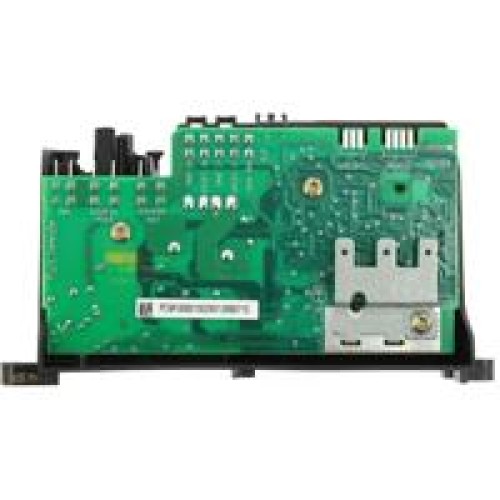

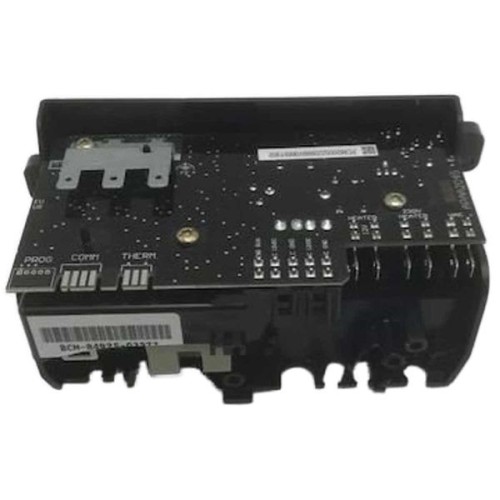

This is the Thetford SR power control board that manages energy selection (240V, 12V and gas) and safety cut-outs inside N3000 and N4000 series caravan fridges. It is the electronic control centre of the fridge, and a faulty board is a common cause of a fridge that will not switch between power sources, will not ignite on gas, or shows no operation at all despite power being present. This EU-spec version suits fridges manufactured from 20 June 2015 onward.

• Brand: Thetford
• Manufacturer part number: 692247
• Application: Thetford N3000 and N4000 series 3-way absorption fridges (EU spec, built after 20/06/2015)
• Compatible models include: N3108, N3112, N3115, N3145, N3150, N3175, N4080, N4090, N4097, N4100, N4104, N4108, N4112, N4141, N4142
• Function: Automatic energy selection and safety control PCB

• Q: How do I know if my fridge needs this exact board?
  A: Check the model and build date on your fridge's data plate. This EU version suits N3000/N4000 fridges built after 20 June 2015; earlier fridges use a different board.
• Q: What symptoms point to a failed control board?
  A: A fridge that will not respond to the control panel, will not switch between 240V/12V/gas, or shows no lights or operation at all despite a good power supply are typical signs.
• Q: Can I fit this myself?
  A: It is an electrical appliance component, so fitting should be done by a qualified auto-electrician or RV technician familiar with Thetford fridge wiring.
• Q: Is this the same as the N3000 V2 board?
  A: Yes, 692247 is Thetford's current power control board for both N3000 and N4000 EU-spec fridges from this production date.
