Thetford Electric Flush Switch for C200 Toilet

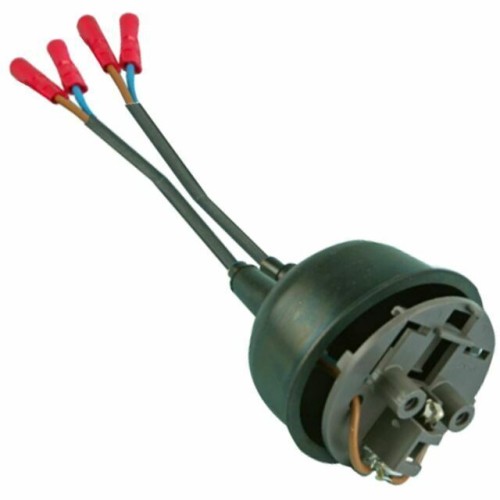

This genuine Thetford switch assembly mounts underneath the flush push-button on C200CW and C200CWE cassette toilets, connecting the electrical supply through to the flush water pump. It's the part that actually turns the pump on when the button is pressed, and the kit includes the connectors, screws, sleeves and a sealing/mastic strip needed to refit it correctly and keep the housing watertight.

• Thetford part number: 23792
• Type: Electric flush switch assembly (mounts beneath the push-button)
• Compatible toilets: Thetford C200CW, C200CWE cassette toilets
• Kit contents: Switch, connectors, screws, sleeves and sealing/mastic strip

• Q: What are the signs this switch has failed?
  A: If pressing the flush button does nothing and the pump doesn't run, but the pump itself works when powered directly, this switch is the likely fault.
• Q: Does this fit manual-flush C200 toilets?
  A: No, it's specifically for the electric flush C200CW and C200CWE models, not the manually-flushed C200 versions.
• Q: Does it come with seals?
  A: Yes, the kit includes a sealing/mastic strip along with connectors and screws to keep the switch housing watertight once refitted.
• Q: Do I need to disconnect the battery to fit it?
  A: Yes, disconnect the 12V supply to the toilet before working on the flush switch wiring.
