FIAMMA Carry-Bike LIFT 77 | Manual Winch

The Fiamma Carry-Bike LIFT 77 is a wall-mounted bike carrier for the back of your motorhome or caravan, with a manual crank-winch that lowers the loaded rail support by 77cm for easy, effortless loading and unloading. Raising or lowering the carrier under full load takes about 90 seconds.

It's supplied with 2 Rail Premium bike rails, Bike-Block Pro fixing systems and a security strip, and carries up to 60kg — 2 bikes as standard, adaptable to 4 (or 2 e-bikes). Built from sturdy galvanised 35mm aluminium tube with steel screws for long-term durability.

• Manual crank-winch lift, lowers the rail base by 77cm for easy loading
• Carries up to 60kg — 2 bikes as standard, adaptable to 4, or 2 e-bikes
• Supplied with 2 Rail Premium bike rails, Bike-Block Pro fixing system and security strip
• Sturdy galvanised aluminium tube construction
• Wall fixing points adjust for vertical wheelbase 68-108cm
• Takes around 90 seconds to raise or lower under full load

• Model: Fiamma Carry-Bike LIFT 77 (Manual Winch)
• Bikes Carried (Standard): 2
• Maximum Bikes: 4 standard, or 2 e-bikes
• Max Load: 60kg
• Weight of Cycle Carrier: approx. 17.4-18.3kg
• Lift Drop: 77cm
• Wall Fixing Points (Vertical Wheelbase): 68-108cm
• Includes: 2 Rail Premium bike rails, Bike-Block Pro fixing system, security strip, crank handle, brackets
• Construction: Galvanised 35mm aluminium tube, steel screws

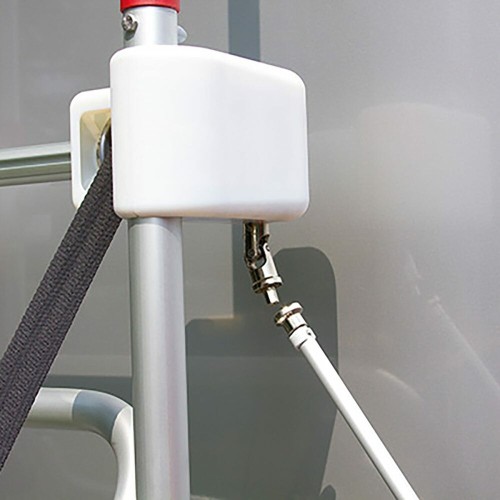

How does the winch work?

A supplied crank handle raises and lowers the bike carrier — it takes about a minute to operate.

Can it carry more than 2 bikes?

It's set up for 2 bikes as standard but can be adapted to carry up to 4, within the 60kg total capacity.

What does the Carry-Bike Lift 77 do?

A manual winch mechanism that lowers and raises a loaded bike rack, making it easier to load heavy or e-bikes without lifting them to full height.

Will this fit my rack?

Suits compatible Fiamma Carry-Bike rack models — confirm your exact rack before ordering.

Is this a genuine Fiamma part?

Yes, supplied as a genuine Fiamma accessory.
