HiTech 30A 12V Smart Battery Charger for LiFePO4 and AGM Batteries
Brand:
HiTech Power Solutions
Stock:
1
Dimensions:
23.50cm x 12.80cm x 6.80cm
Manufacturer Part Number (MPN):
HT-1230L
Price:
$350.00
$290.00

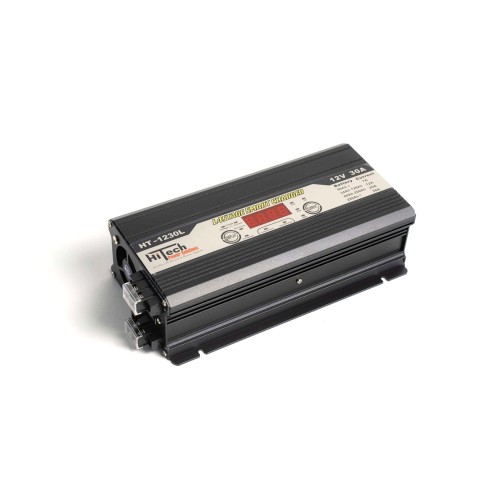

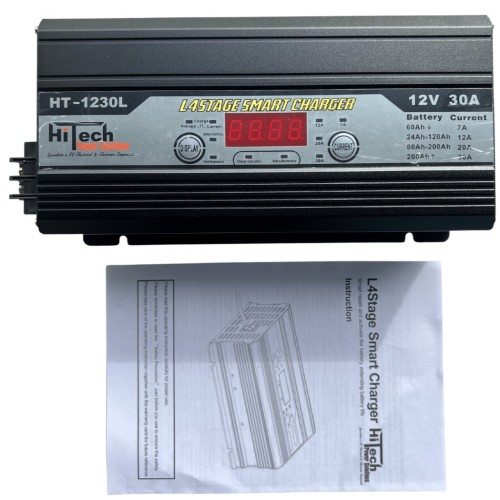

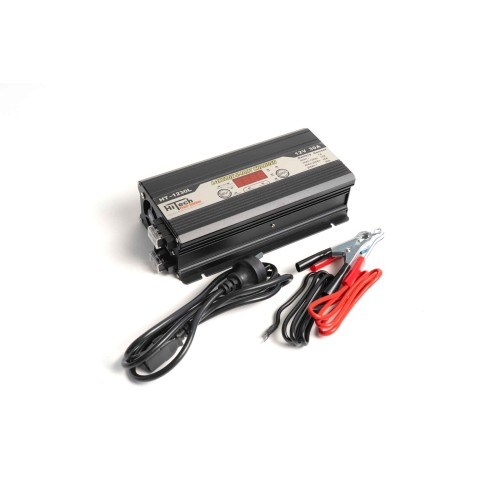

HiTech 30A 12V Smart Battery Charger for LiFePO4 and AGM Batteries
The HiTech HT-1230L is a 30A, 12V smart battery charger for caravans, RVs, 4WDs, boats and off-grid systems. A simple switch sets it for lithium iron phosphate (LiFePO4) or lead-acid/AGM batteries, and a four-stage charging process keeps the battery charged safely. It suits 12V batteries from 24Ah upwards, with up to 450W of output.
Key Features
- Four-stage PWM charging with automatic voltage stabilisation and current limiting
- Manually selectable output of 7A, 12A, 20A or 30A to suit your battery size
- Digital display showing voltage, current, battery level (%), time, temperature and error codes

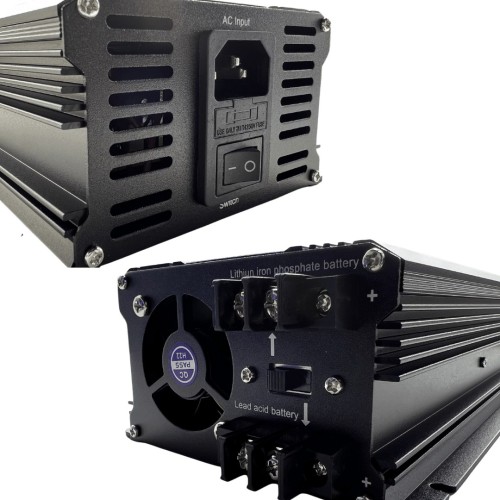

- Battery type switch for lithium or lead-acid mode (12V batteries only)
- Internal temperature sensor
- Auto repair function that uses controlled charging cycles to help recover battery performance
- Protection against reverse polarity, short circuit, over-temperature, over-voltage and overcharging
- Cooling fan runs only when the charging current is above 5A
- Compact aluminium body, 235 × 128 × 68mm and 1.5kg
| Brand | HiTech Power Solutions |
|---|---|
| Model | HT-1230L |
| Type | 4-stage smart battery charger for LiFePO4 and lead-acid/AGM batteries |
| Input Voltage (AC) | 180V – 240V, 50Hz |
| Input Current | 8A |
| Output Voltage | Lithium: 14.4V ± 0.3V; lead-acid: 13.8V ± 0.05V |
| Output Current | 0.5A – 30A (selectable 7A, 12A, 20A or 30A) |
| Output Power | 450W |
| Battery Compatibility | 12V batteries, 24Ah capacity or larger |
| Standby Current | Less than 15mA |
| Minimum Battery Voltage to Start | 4.5V |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Weight | 1.5 kg |
| Dimensions (L × W × H) | 235 × 128 × 68 mm |
| Manufacturer Part Number | HT-1230L |
| Warranty | 1 year manufacturer's warranty |
Is GST included in the price?
Yes — all prices shown include 15% New Zealand GST.
Do you ship across New Zealand?
Yes. Rolleston Caravans dispatches nationwide and freight is calculated at checkout. Pickup from our Rolleston store is also available.
Can it charge both lithium and AGM batteries?
Yes. Use the battery type switch to select lithium (LiFePO4) or lead-acid/AGM mode. Set the switch to one mode only, and do not connect both battery types at once, even when the charger is switched off.
Will it charge a 24V battery?
No. This charger is for 12V batteries only, with a minimum battery capacity of 24Ah.
How do I choose the charging current?
Select 7A, 12A, 20A or 30A to suit your battery. As a general guide, a charge rate of 10–20% of the battery capacity is typical, and you should not exceed the battery manufacturer's maximum charge rate.
What warranty applies?
This charger is covered by a 1-year manufacturer's warranty. Contact our team if you need to make a claim or have a fault.
