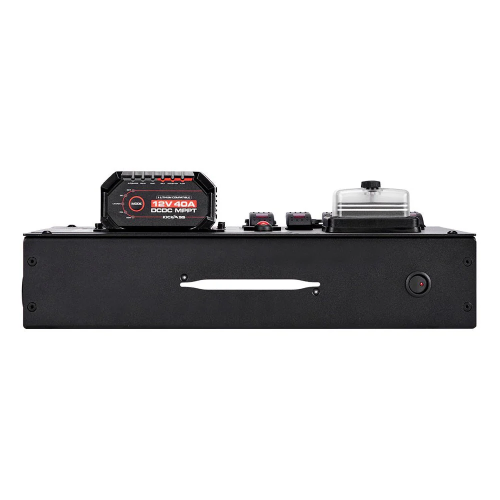

KickAss 12V Control Hub / Panel with 40A DCDC Charger + Integrated Bluetooth

KickAss 12V Control Hub / Panel with 40A DCDC Charger + Integrated Bluetooth

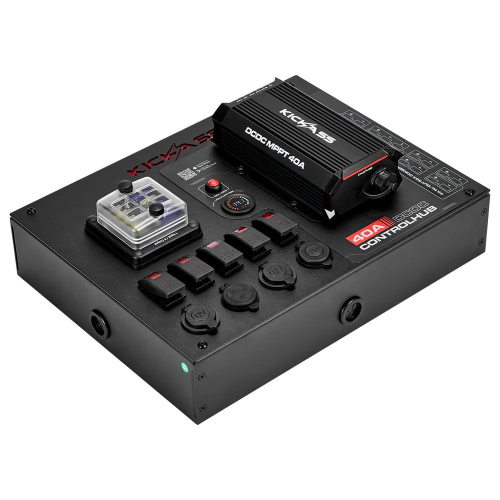

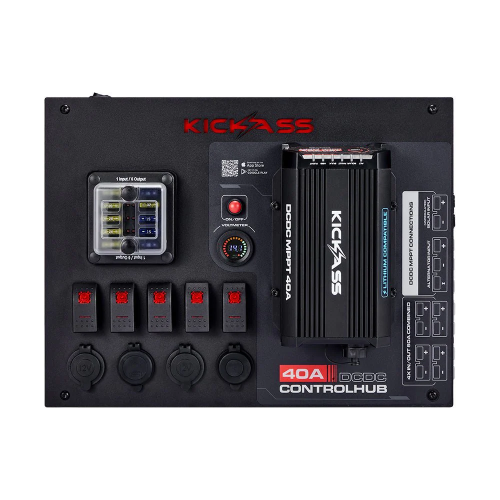

Simplify your 12V setup with the KickAss Control Hub, featuring an integrated Smart 40A DC-DC charger with built-in Bluetooth monitoring. Designed for 4WD canopies, camper setups and DIY off-grid builds, it combines charging, power distribution and system control into one compact, easy-to-install unit.

The KickAss Control Hub removes the need for multiple separate components by combining charging and power distribution in one tidy system. It provides a clean, centralised solution for managing your 12V accessories while keeping your installation neat and efficient.

The integrated Smart 40A DC-DC charger delivers reliable charging from both your vehicle's alternator and solar panels. Built-in Bluetooth connectivity allows you to monitor and control your system from your phone, including real-time voltage, current, charging status and system alerts.

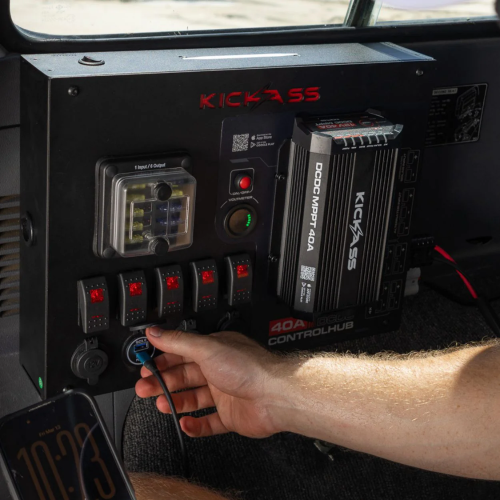

Designed to act as a central distribution point, the Control Hub can power up to 15 devices at once, including fridges, lighting, water pumps, inverters and other 12V accessories. It simplifies wiring and keeps your setup organised and easy to manage. With its integrated design and straightforward mounting options, it's ideal for canopy builds and touring setups where space and organisation matter.

Key Features

• Integrated Smart 40A DC-DC Charger
• Power up to 15 devices simultaneously
• Built-in Bluetooth monitoring and control
• Charge via alternator and solar input
• Auto-reset circuit protection and fuses
• All-in-one central power hub

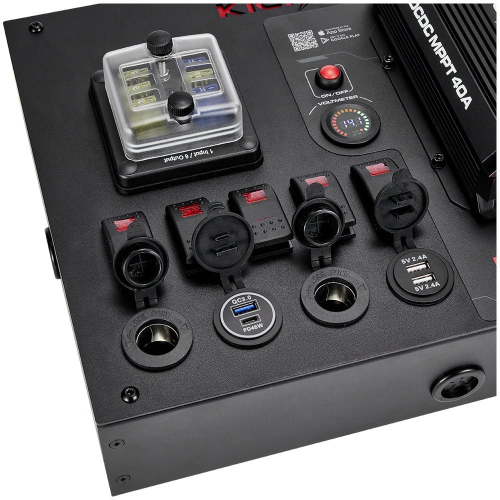

Cig Socket Outputs: 2 x 10A

USB Outputs: 2 x USB-A | 1 x USB-C | 1 x QC3.0

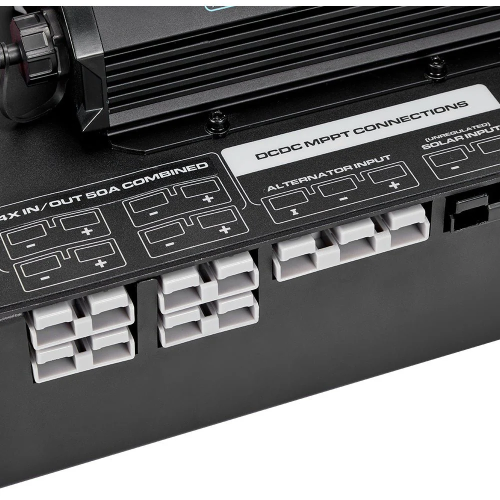

Anderson Input / Outputs: 4 (50A Shared)

Anderson Inputs: 3 Pin Alternator | Unregulated Solar

Rocker Switches: 5 (Fused)

Alternator Input Voltage Range: 9-32V DC

Solar Input Voltage Range: 9-32V DC

Maximum Input Current: 56A

Maximum Continuous Charging Current: 40A

Maximum Output Power: 500W

Recommended Output Fuse Size: 50A

No Load Current Draw: <10mA

Efficiency: Approx. 93% when full load

Ambient Operating Temperature: -20°C to +80°C

Compatible Battery Type: GEL | WET | AGM | CAL | LiFePO4

Recommended Battery Capacity (Lead Acid): 160-500Ah

Recommended Battery Capacity (LiFePO4): 50-500Ah

Is GST included in the price?

Yes — all prices shown include 15% New Zealand GST.

Do you ship across New Zealand?

Yes. Rolleston Caravans dispatches nationwide and freight is calculated at checkout. Pickup from our Rolleston store is also available.

How many devices can this power?

The Control Hub can power up to 15 devices simultaneously, including fridges, lighting, water pumps, inverters and other 12V accessories.

Can I charge this from solar as well as the alternator?

Yes. The integrated Smart 40A DC-DC charger accepts both alternator and solar (MPPT) input.
