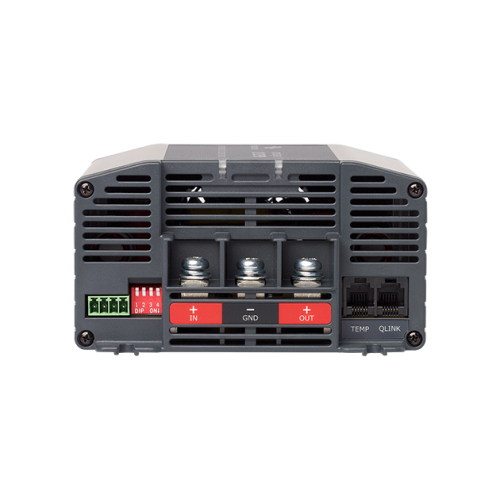

TBS Omnicharge OCD 12/24-30 DC-DC Battery Charger

TBS Omnicharge OCD 12/24-30 DC-DC Battery Charger

The Omnicharge OCD is a programmable DC-DC battery charger built to charge an auxiliary or service battery from a vehicle's starter battery, even where the input voltage sits above, below, or equal to the output — a job a basic battery isolator or VSR can't do properly. The OCD 12/24-30 takes a 12V input and steps it up to a regulated 24V output at up to 30A continuous.

An intelligent IUoUo 3-stage, temperature-compensated charge profile suits flooded, GEL, AGM and LiFePO4 batteries, with programmable input voltage thresholds and an output status signal for automation or monitoring.

Key Features

• 12V in / 24V out, 30A continuous charging
• Intelligent 3-stage (IUoUo), temperature-compensated charge profile
• Compatible with flooded, GEL, AGM and LiFePO4 batteries
• Programmable input voltage thresholds and output status function
• Engine-run signal and BMS control inputs
• Protected against high temperature, short circuit, over/under-voltage and reverse polarity

TBS Electronics Quality — trusted marine and off-grid power electronics

Brand: TBS Electronics
Article code: 5022420
Model: Omnicharge OCD 12/24-30
Input voltage: 12 Vdc (10.0–16.0 V range)
Max input current: 65 A
Output voltage: 24 Vdc (24.0–32.0 V range)
Max continuous output current: 30 A
Charge algorithm: IUoUo intelligent 3-stage, temperature compensated
Compatible batteries: Flooded, GEL, AGM, LiFePO4
Standby draw: < 45 mA
Protection: High temperature, short circuit, high/low input voltage, reverse polarity
Operating temperature range: -20°C to +60°C
Storage temperature range: -30°C to +70°C
Enclosure protection: IP21, variable-speed fan cooling
Weight: 1.2 kg
Dimensions (l x w x h): 170 x 128 x 70 mm

What does this DC-DC charger do?

It steps a 12V starter-battery supply up to charge a 24V auxiliary battery bank, using an intelligent 3-stage charge profile suited to flooded, GEL, AGM and LiFePO4 batteries.

Is GST included in the price?

Yes — all prices shown include 15% New Zealand GST.

Do you ship across New Zealand?

Yes. Rolleston Caravans dispatches nationwide and freight is calculated at checkout. Pickup from our Rolleston store is also available.

Will the OCD 12/24-30 suit my setup?

This model is for 12V-to-24V applications at up to 30A continuous — check your starter battery and 24V bank voltages against the Specifications tab. If you're unsure, contact us with your setup details and we'll confirm compatibility.

What warranty applies?

This product is covered by the manufacturer's warranty. Get in touch with our team if you need to make a claim or have a fault.
