Starlink Mini Compatible DC Panel-Mount Socket - 5.5 x 2.1mm Female Connector

Starlink Mini Compatible DC Panel-Mount Socket - 5.5 x 2.1mm Female Connector

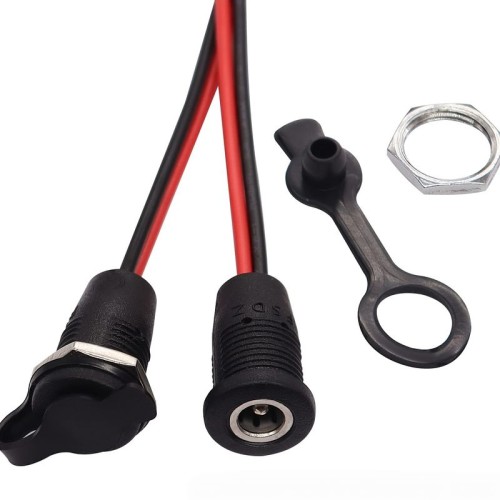

A threaded, panel-mount DC socket for permanently wiring a Starlink Mini power connection into your caravan, campervan or battery box. Drill a 12mm hole, mount the threaded socket through your panel, wire in the 15cm pigtail, and you've got a neat, weatherproof plug-in point — no more feeding cables through gaps or leaving connections exposed.

The 5.5 x 2.1mm barrel size matches the Starlink Mini's own power cable (and our matching 3m DC extension cable), so you can quick-connect and disconnect your dish's power lead at the panel. A hinged rubber dust cap keeps the socket weatherproof and free of dirt when not in use, and the pre-tinned 20AWG pigtail wires solder or crimp on cleanly.

Key Features

• Threaded panel-mount DC socket, 5.5 x 2.1mm female (fits a 12mm mounting hole)

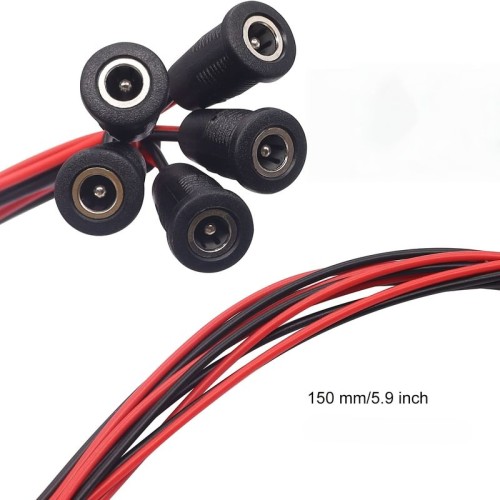

• 150mm pre-tinned red/black pigtail wire for easy wiring
• Rated DC 50V, 5A
• Hinged rubber dust cap for weatherproofing when unplugged
• Mounting nut included
• Compatible with Starlink Mini and other 5.5 x 2.1mm DC devices

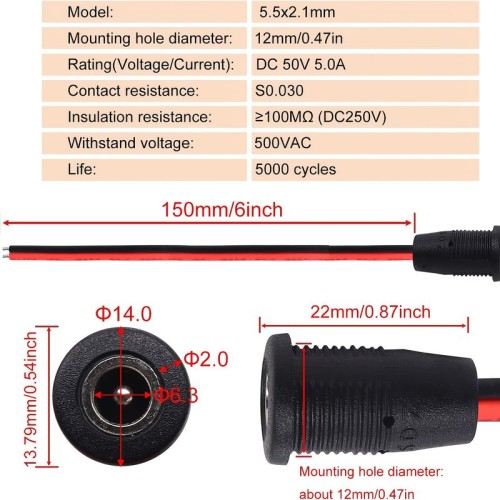

Connector type: DC 5.5 x 2.1mm female socket, threaded panel mount

Pigtail wire length: 150mm (5.9in)

Wire: Pre-tinned copper, red/black, 20AWG

Rating: DC 50V, 5A

Contact resistance: ≤0.030Ω

Insulation resistance: ≥100MΩ (DC250V)

Withstand voltage: 500VAC

Mechanical life: 5000 cycles

Mounting hole diameter: 12mm

Includes: Mounting nut, hinged rubber dust cap

Compatibility: Starlink Mini and other 5.5 x 2.1mm DC connections

Is GST included in the price?

Yes — all prices shown include 15% New Zealand GST.

Do you ship across New Zealand?

Yes. Rolleston Caravans dispatches nationwide and freight is calculated at checkout. Pickup from our Rolleston store is also available.

Will this work with my Starlink Mini power cable?

Yes. The 5.5 x 2.1mm barrel matches the Starlink Mini's own power connector, so it also fits our matching 3m DC extension cable — ideal for wiring a permanent panel-mount plug-in point.

What warranty applies?

This product is covered by the manufacturer's warranty. Get in touch with our team if you need to make a claim or have a fault.
