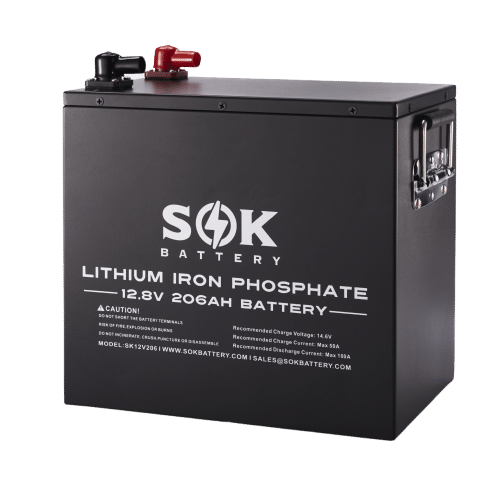

SOK 12v 206Ah Lithium Battery

The LiFePO4 prismatic cells in the SOK 12v 206Ah Lithium Battery are a genuine, Grade A product that will provide most users with a usable lifespan of up to and possibly beyond 20 years.

SOK batteries are renowned for their high-quality construction. The cells, BMS, wiring and busbars are all thoughtfully designed and integrated resulting in a battery that is not only safer but is more reliable and durable.

Heating:

• Ideal for those very cold environments the SK12V206H has built-in heating elements that heat the battery to a temperature where the battery can charge. The BMS ensures that the heating elements will never drain your battery.
• When the battery senses a charging current from solar or your DC-DC Charger, the BMS diverts all power to the heating elements. Once the internal temperature probes reach the appropriate temperature, the power is then redirected into charging the battery.
• Should the heating not be required, it will not turn on or be a drain on your battery.

Features:

• 206ah/2636Wh capacity
• Grade A Ganfeng prismatic cells
• 7-Year manufacturer-backed warranty
• High-quality waterproof nylon enclosure
• Stainless steel fittings
• Built-in Smart Battery Management System (BMS)
• Bluetooth
• 4000~8000 cycle life & maintenance-free
• Overcharge & over-discharge protection
• Overcurrent & short circuit protection
• Detachable cover, user-serviceable BMS and cells
• High & low-temperature disconnects.
• Connect in parallel (up to four units) or series (24v & 48v)

Charging:

• Recommended Charge Current: 40A
• Maximum Charge Current: 70A
• Recommended Charge Voltage: 14.6V
• Maximum batteries in series: 4

Discharging:

• Maximum Continuous Discharge Current: 170A
• Peak Discharge Current: 200A (3 s)
• Recommend low voltage disconnect: 11.2V
• BMS discharge cut-off voltage: Around 10.4V
• Reconnect Voltage:>11.6V

Size:

• Dimensions: 275mm (w) x 198mm (d) x 285mm (h)
• Weight: 21.6kg
• Terminal Type: M8, 5/16 lugs

Operating temperatures:

• Discharge Temperature: -20ºC to 60ºC
• Charge Temperature: -20ºC to 45ºC
• Storage Temperature: -5ºC to 35ºC
• BMS High-Temperature Cut-Off: 65ºC
• Reconnect Temperature: 55ºC
