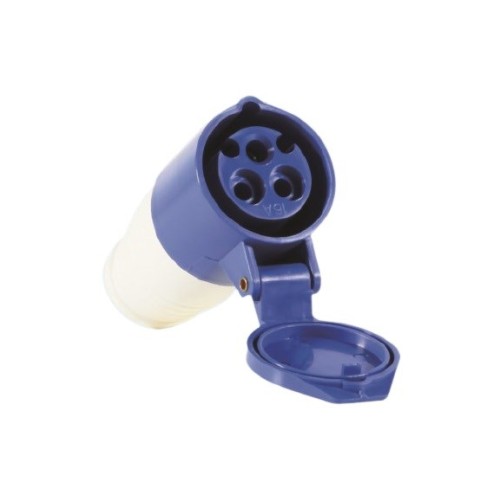

Mains lead female plug

3 pin 16A IP44 Caravan Plug

• 2P + E
• IP44
• 16A
• 6h/200-250V

What is a mains lead female plug?

A mains lead female plug is the socket end of a caravan power lead, designed to receive the male plug and deliver power into your caravan or extension lead system.

What type of plug is this?

This is a 3-pin 16A caravan connector (2P + E), the standard plug type used for caravan and motorhome power connections in New Zealand.

What does 16A mean?

The 16 amp rating allows the plug to safely handle higher electrical loads than a standard household plug, making it suitable for powering caravan appliances.

What voltage does it support?

It is designed for 200–250V AC power, which matches New Zealand mains supply.

What does IP44 mean?

IP44 means the plug is protected against splashes of water and small objects, making it suitable for outdoor use at campsites.

Where is the female plug used?

It is typically used to:

• Connect to the caravan’s external inlet
• Form part of a caravan extension lead
• Join power leads safely in outdoor environments

Is this the same as a household socket?

No. Caravan plugs are larger and designed differently to prevent accidental use with standard 10A household sockets.

Can I install it myself?

Yes, if you have basic electrical knowledge. These plugs usually feature:

• Screw terminals for wiring
• Cable clamp for strain relief
  However, correct wiring is essential for safety.

What tools are required for installation?

You’ll typically need:

• Screwdriver
• Wire stripper
• Possibly a small spanner

Is it suitable for outdoor use?

Yes. With its IP44 rating, it is built for outdoor caravan use, though it should not be submerged in water.

Can I use this with any caravan?

It is compatible with most NZ caravans and motorhomes that use the standard 16A blue power system.

Do I need an adaptor to use it at home?

Yes. To connect to a household socket, you’ll need a 16A to 10A caravan adaptor designed for safe use.
