Mounting Flange 20MM In Black.mf20c/ B

The PowerRun 15A 240V Power Inlet Socket is a reliable and weather-resistant solution for safely bringing 240V mains power into your caravan, motorhome, or RV. Finished in black, this inlet is commonly used as the external connection point for shore power at caravan parks or powered sites.

Designed to recess neatly into the wall, this inlet features a fixed weatherproof lid and mounting hole layout that allows it to directly replace older Clipsal pre-2006 power inlets, making it a popular upgrade or replacement option.

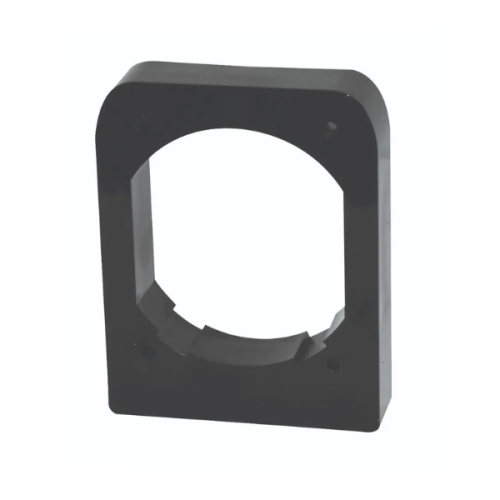

Please Note: This model does not have a replaceable cover flap. Depending on your wall thickness, you may require a separate backing plate (sold separately( 500-09018 )). Existing backing plates can usually be reused.

Features:

• 15A 240V power inlet for caravans, motorhomes, and RVs
• Weather-resistant external inlet for mains power connection
• Black finish to suit modern RV exteriors
• Recess-mounted design for a clean, flush appearance
• Fixed cover lid (non-replaceable flap design)
• Compatible mounting pattern to replace Clipsal pre-2006 inlets
• Durable construction suitable for outdoor use
• Backed by a 1-year warranty

Specifications:

Brand: Transco (PowerRun)

Model / SKU: IL15/B

Other Identifier: 500-09002

Voltage / Current Rating: 240V / 15A

Colour: Black

Recess Depth (Centre): 38 mm

Overall Cover Plate Size: 80 mm (W) × 100 mm (H)

Screw Hole Spacing:

·

• Approx. 55 mm horizontally
• Approx. 70 mm vertically
• Mounting Compatibility: Replaces Clipsal pre-2006 power inlets
• Backing Plate: Not included (sold separately if required)
  Warranty: 1 year

 FAQ

Q: What is this inlet used for?
It’s used to safely connect external 240V mains power into your caravan or RV from a powered site or generator.

Q: Does this come with a backing plate?
No ,  the backing plate is sold separately. 500-09018
If your existing inlet already has a backing plate, it can usually be reused.

Q: Will this replace my old Clipsal inlet?
Yes ,  the screw hole spacing is designed to match Clipsal pre-2006 power inlets, allowing for an easy swap with no wall modification in most cases.

• Brand: Mounting

Will this fit my setup?

This is a genuine Mounting part — cross-check the part reference and your existing equipment before ordering, or contact us to confirm.

Is this a genuine Mounting part?

Yes, this is supplied as a genuine Mounting replacement part.

Does it come with a warranty?

Yes, covered by Mounting's manufacturer warranty against defects.
