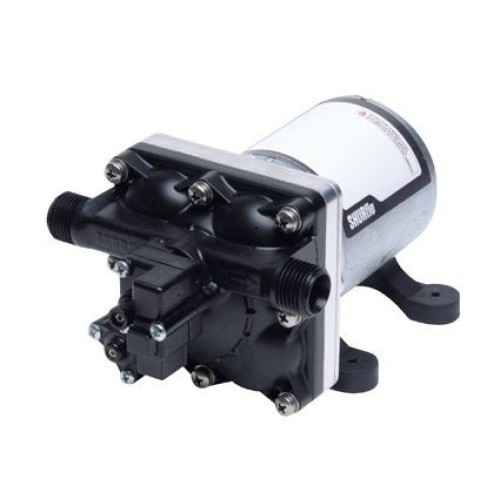

Shurflo Pump 12V 10LT Oem Bulk No Fittings

A 12V fresh water pump with a one-piece diaphragm and internal by-pass for long life and maximum performance. Built for high flow demand, this updated Shurflo pump has low noise emissions and no rapid cycling. CE and C-Tick compliant; must be installed with a filter.

Features

• Shut-off pressure 45 PSI, restart at 30 PSI
• Maintains stronger delivery under load: approx. 7 L/min at 30 PSI and still approx. 2.6 L/min at 40 PSI
• Ideal for larger RVs or multi-outlet systems where steady shower and tap pressure are required
• 4-chamber diaphragm pump; 12V DC permanent magnet motor with thermal overload and automatic restart; 7A fuse recommended
• 1/2"-14 NPSM male inlet port; OEM bulk, no fittings
• Polypropylene housing; weighs 2.3kg; 205L × 125W × 111H mm
• Model 4009-101-A87

• Pump:
• Type: 4 Chamber Diaphragm Pump
• Ports: 1/2” - 14 NPSM-Male
• Inlet PSI: 30Psi (2.1Bar) Max
• Shut Off Pressure: 45Psi
• Electrical:
• Motor: 12V DC Permanent Magnet, Intermittent Duty
• Protection: Thermal Overload, Automatic Restart
• Fuse: 7A Recommended
• Materials:
• Housing: Polypropylene
• Hardware: Stainless and Zinc Plated Steel
• Net Weight: 2.3kg
• Dimensions (mm): 205L x 125W x 111H
• Model/Part No: 4009-101-A87

Will this fit my setup?

This is a genuine Shurflo part — cross-check the part reference and your existing equipment before ordering, or contact us to confirm.

Is this a genuine Shurflo part?

Yes, this is supplied as a genuine Shurflo replacement part.

Does it come with a warranty?

Yes, covered by Shurflo's manufacturer warranty against defects.
