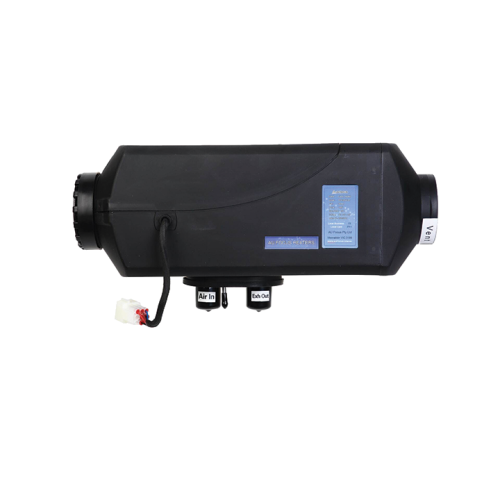

AUFocus 2kW Diesel heater kit

AUFocus 2kW Diesel Heater Kit – Efficient, Bluetooth-Controlled Warmth

Warm your caravan from cold to comfortable in minutes — without gas, without condensation, and without draining your battery. The AUFocus 2kW Diesel Heater Kit is the most popular diesel heating solution for small to medium New Zealand caravans, delivering adjustable heat output from 1kW to 2kW on a miserly 0.1–0.3 litres of diesel per hour.

This is the Gen-4 / MZ model — the current generation featuring Bluetooth control via smartphone app, an LCD remote panel, and three operating modes including a smart thermostat mode that automatically holds your set temperature. Everything needed for a full installation is included in the kit.

Key Features

• 1kW–2kW Adjustable Output Scale heating to conditions — low setting for mild evenings, full power for cold winter nights

• Bluetooth App Control Set temperature, check fuel consumption, and control the heater from your smartphone

• Smart Thermostat Mode Set your target temperature and the heater maintains it automatically

• 0.1–0.3L/h Fuel Consumption Extremely economical — a 5L tank can run overnight on low heat

• 12V DC / Under 100W Running Draw Compatible with solar/battery setups after initial start-up

• No Condensation Unlike gas heaters, diesel heaters don't introduce moisture into the van

• Operates to –40°C Functions in the most extreme New Zealand alpine conditions

• Complete Installation Kit Heater, OLED control panel, fuel intake, 1m ducting, floor plate, 2 vents

• 24-Month Warranty Backed by AU Focus

• RCM / EMC Certified Meets NZ compliance requirements

Add to cart and enjoy reliable warmth through every South Island winter.

Brand: AUFocus (AU Focus)

Generation: Gen-4 / MZ

Power Output: 1kW – 2kW (adjustable)

Fuel Type: Diesel only

Voltage: 12V DC

Fuel Consumption: 0.1 – 0.3 L/hour

Running Power Draw: 5–35W (peak at ignition: 90–150W)

Operating Temperature Range: –40°C to +50°C

Heater Dimensions: 340 × 115 × 115mm

Control: LCD remote panel + Bluetooth smartphone app

Operating Modes: Fan-only, manual (1–10), smart thermostat

Kit Includes: Heater, OLED control panel, installation kit, fuel intake, 1m ducting, floor plate, 2 vents

Warranty: 24 months

Certification: RCM / EMC

Does the AUFocus heater need professional installation?

The heater itself is a 12V electrical appliance — installation can be done by a competent DIY person following the instructions. However, the fuel line penetrates the floor of the van, which some owners prefer to have done professionally. Our workshop can install this for you — contact us for a quote.

Is a separate fuel tank required?

Yes. The heater requires a diesel fuel tank. The AUFocus 5L and 9.5L stainless steel fuel tanks (along with their checker-plate covers) are available separately in our Heaters section and are purpose-designed for use with this heater.

How does the 2kW compare to the 5kW model?

The 2kW model is ideal for standard-size caravans up to approximately 6–7 metres. If you have a larger van, a poorly insulated van, or frequently camp in very cold alpine conditions, the 5kW model provides more headroom. When in doubt, contact us and we can help you choose.

Will this heater void my caravan warranty?

Installing a diesel heater does not automatically void a caravan warranty, but installation must be done correctly. If in doubt, have our workshop install it and keep the installation record.
