Coast RV 14x14 White Wind-Up Roof Vent With 12V FAN

The Coast RV 14x14 Wind-Up Roof Vent with 12V Fan adds active ventilation to the proven standard Coast RV vent design. The built-in 150mm (6-inch) 12V fan lets you draw stale air out of the caravan when natural airflow isn’t enough — making it particularly well-suited to bathrooms, shower rooms, and sleeping areas in warm weather.

Coast RV roof vents feature an extra-strong galvanized steel roof flange in a sleek white finish, with an aerodynamic UV-stabilised polypropylene dome. The fan is independently switchable, so you can use the vent in passive wind-up mode on cool days and switch the fan on when you need to move air more quickly. The motor is EMC and RCM approved, meeting Australian and New Zealand electrical safety standards.

Key Features

• Wind-up hatch mechanism — smooth, reliable operation with a single winding knob from inside the vehicle
• Integrated 150mm (6-inch) 12V DC fan — draws stale or warm air out of the living space
• Independent on/off switch — use in passive ventilation mode or switch the fan on as needed
• Motor: 13.6V, 0.12A — low power draw, EMC and RCM approved to Australian/NZ standards
• Extra-strong galvanised steel roof flange and body — resists corrosion and handles caravan roof flex
• UV-stabilised polypropylene lid in white — resists fading and cracking over years of sun exposure
• Weatherproof seal — keeps rain and driving dust out when the hatch is closed
• Removable two-piece fly screen frame with curved corners — easy to clean or replace independently
• Inner trim ring included — clean, finished look from inside the caravan
• Fits roof thicknesses from 25mm to 70mm — suitable for most caravan and motorhome roof constructions
• Suits a standard 360 x 360mm roof cut-out — direct replacement for Dexter/Ventline 14” x 14” metal vent with 12V fan

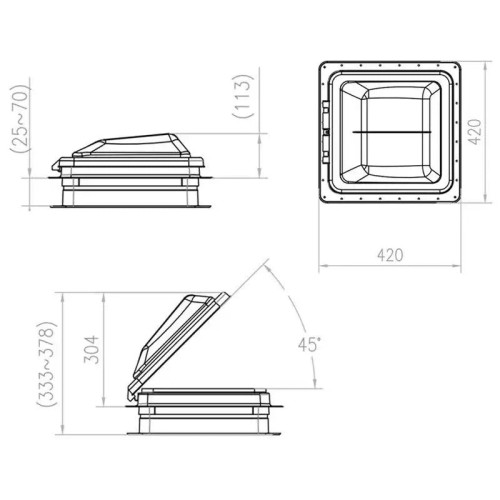

• Cut-Out Size: 360 × 360mm
• Overall Inner Frame Size: 407 × 407mm
• Suitable Roof Thickness: 25–70mm
• Protruding Height (Closed): 113mm
• Protruding Height (Open): 304mm
• Maximum Opening Angle: 45°
• Lid Colour: White
• Lid Material: UV-stabilised polypropylene
• Frame Material: Galvanised steel
• Insect Screen: Removable two-piece with curved corners
• Fan Diameter: 150mm (6 inch)
• Motor Voltage: 13.6V DC
• Motor Current: 0.12A
• Motor Certification: EMC and RCM approved
• Electronics On/Off Switch: Yes
• Net Weight: 1.95kg

What size roof cut-out does this vent require?

The vent requires a 360 × 360mm cut-out, matching the standard 14-inch caravan roof vent footprint. The inner trim ring spans 407 × 407mm overall. It is a direct replacement for Dexter/Ventline 14" × 14" metal vents with 12V fan.

How does the fan switch work?

There is an independent on/off switch on the inner trim ring that controls the fan motor separately from the hatch position. You can have the hatch open with the fan off (passive ventilation), hatch open with the fan on (active extraction), or hatch closed with the fan switched off. The fan cannot be run with the hatch fully closed as air needs somewhere to escape.

How much power does the fan draw?

The motor is rated at 13.6V, 0.12A — approximately 1.6 watts. This is very low power consumption, comparable to a small LED light. Running the fan continuously overnight from a fully charged 100Ah battery would use less than 0.2Ah, so battery drain is minimal even on extended off-grid stays.

Is the fan motor certified for use in Australia and New Zealand?

Yes — the motor carries both EMC (electromagnetic compatibility) and RCM (Regulatory Compliance Mark) approval, which are the relevant certification marks for electrical/electronic equipment sold and used in Australia and New Zealand.

Can I replace my existing bathroom vent with this model?

If your current vent has a 14" × 14" cut-out (approximately 360mm), this is designed as a direct replacement. It is specifically noted as a drop-in replacement for Dexter and Ventline 14" × 14" metal vents with 12V fan. Check your existing cut-out size before ordering.

Does the fan run in one direction only, or can it reverse?

The fan runs in one direction — configured for air extraction (drawing air out of the vehicle). For bathroom and toilet areas this is the most useful configuration. Reversible-fan roof vent models are available separately if you need intake airflow.

What roof thicknesses will it fit?

The vent fits roofs from 25mm to 70mm thick, covering most caravan, motorhome, and campervan roof constructions. Measure your roof thickness at the cut-out location before installation.
