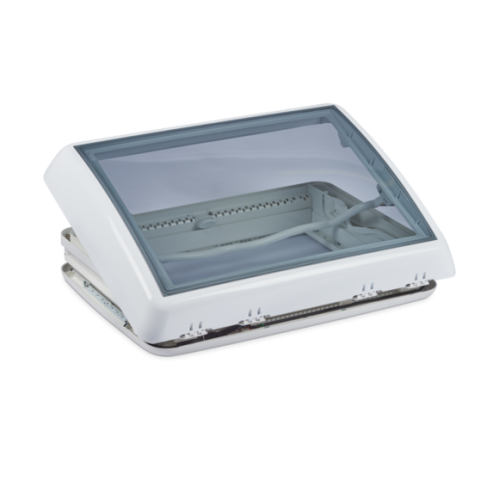

Dometic Heki Midi Roof Vent with Blind & Fly Screen

Dometic Heki Midi Roof Vent with Blind & Fly Screen

The Dometic Heki Midi is the mid-size Heki roof vent – a 700mm x 500mm opening that provides excellent natural light and ventilation in a more compact footprint than the full Heki 2. It comes complete with an integrated roller blind and fly screen, a double acrylic-glazed dome, and built-in LED lighting with white daylight and blue night-time modes.

Key Features

• 700mm x 500mm cut-out opening – a versatile mid-size option in the Heki range
• Integrated roller blind and fly screen, adjustable independently or together
• Double acrylic-glazed dome for insulation and durability
• Built-in LED lighting with white (day) and blue (night) modes
• Opens to a maximum angle of around 45° with a lockable position
• Suits roof thicknesses from 25mm to 60mm with the correct mounting bracket kit
• White frame finish with a clear or lightly tinted dome to suit most caravans

Brand Quality
Dometic is the world leader in caravan and motorhome roof ventilation, and Heki vents are the most trusted name in the segment across Europe and Australasia, built to withstand UV, rain, hail, and the New Zealand outdoors. A quality roof vent transforms the comfort and air quality of your caravan interior, particularly in summer.

Brand: Dometic

Series: Heki (Heki Midi)

Part Number: DOM14921702 / 9104120362

Cut-out Opening Size: 700mm x 500mm

Clear Opening (Vent Aperture): Approximately 585mm x 404mm

Overall External Dimensions: Approximately 847mm x 617mm x 617mm

Roof Thickness Range: 25mm to 60mm (correct mounting bracket kit required per thickness band)

Maximum Opening Angle: Approximately 45°

Included: Integrated roller blind and fly screen, LED lighting (white/blue), mounting brackets and fixing screws

Frame Colour: White

Approximate Weight: 10kg

Application: Caravan and motorhome roof ventilation and natural lighting

Does the price include GST?
Yes, all prices shown on the site include GST.

Do you ship NZ-wide?
Yes, we ship throughout New Zealand.

How do I know this will fit my caravan?
Check the 700mm x 500mm cut-out size against your existing roof opening (or the space you plan to cut), and confirm your roof thickness falls within the 25–60mm range, as the correct mounting bracket kit depends on thickness. Let us know your roof thickness when ordering so we can supply the matching bracket kit, or contact us first if you're unsure.

What's the warranty?
Dometic Heki vents typically carry a 12-month manufacturer's warranty. Contact us for full warranty terms and to arrange a claim if needed.

Do I need a professional to install a Heki roof vent?
Installation requires cutting a hole in the caravan roof and sealing around the vent frame. This is a job most experienced DIY caravanners undertake themselves, but it must be done correctly to avoid leaks. Our workshop can install this for you – contact us to book.

Is the Heki Midi suitable for New Zealand's variable weather?
Yes. Heki vents are designed for demanding European conditions and hold up well to New Zealand's sun, rain and hail. The raised dome allows ventilation even in light rain, but the vent should be closed fully in heavy rain or high winds, and always while towing or driving.

What do the LED lights do?
The built-in LED lighting has a white setting for everyday daytime use and a dimmer blue night-light mode, so you don't need to disturb the whole caravan for a quick light at night.
