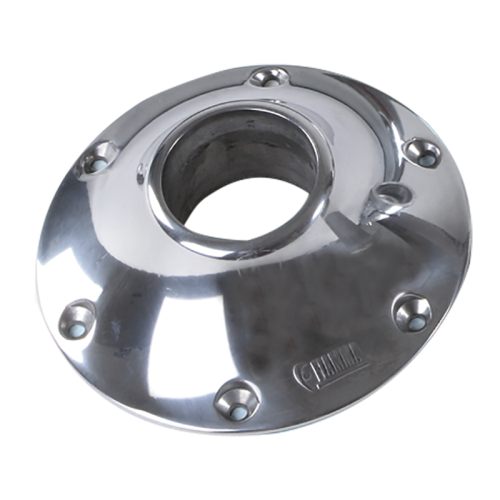

Fiamma Conic 04 Above-Floor Table Leg Base - C5063-01

The Fiamma Conic 04 Top Mount Connection is an above-floor base for Fiamma table leg systems, letting you mount a table leg without cutting into the caravan or motorhome floor. It's a smart option when the floor beneath your ideal table position covers a fuel tank, underfloor heating, or wiring.

Made from corrosion-resistant anodised aluminium, the wide-footprint base spreads load evenly and accepts standard 57mm diameter tapered table legs, including Fiamma's Tube Pro range. It secures to the floor with six self-tapping screws (included).

• Fiamma part number: C5063-01-
• Overall base diameter: 165mm
• Leg socket diameter: 57mm (tapered)
• Height above floor: approx. 50mm
• Material: Anodised aluminium
• Mounting: 6 x self-tapping screws (included)
• Compatible with Fiamma Tube Pro table legs and Tripod Pro base systems

Q: Do I need to cut a hole in my caravan floor to fit this?
A: No - this is an above-floor (surface mount) base, designed specifically to avoid cutting into the floor.

Q: Will this fit any table leg?
A: It's designed for Fiamma's standard 57mm tapered table legs, such as the Tube Pro range - it won't suit non-Fiamma leg fittings.
