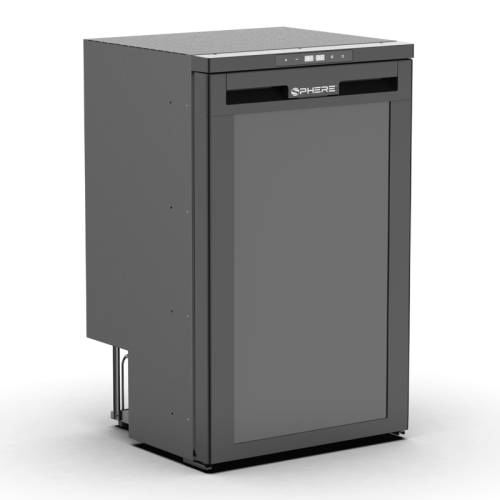

Sphere UCF83 83L Upright 12V/24V Compressor Fridge Freezer

Keep your food fresher for longer, wherever the road takes you. The Sphere UCF83 83L Upright Compressor Fridge Freezer delivers powerful, home-style cooling in a slim upright cabinet that slots neatly into caravans, campervans and motorhomes. At its heart is a dependable LG DC compressor that runs efficiently on 12V or 24V — ideal for free-camping and off-grid touring where every amp counts.

With a generous 83.2L total capacity split into a 74.6L fridge and a true 8.6L freezer, there's room for a big shop and frozen essentials. Built-in battery protection guards against flattening your house batteries, while quiet 45dB operation and a night mode keep things peaceful after dark.

Key Features

• 83.2L total capacity — 74.6L fridge + 8.6L freezer
• Efficient LG DC compressor, runs on 12V or 24V
• Adjustable cooling: fridge 0°C to 8°C, freezer -12°C to -20°C
• Reversible door to suit either side of your layout
• Smart 3-stage battery protection (High/Med/Low)
• Interior LED light and removable wire shelves
• Quiet 45dB operation with night mode

• Total capacity: 83.2L (74.6L fridge / 8.6L freezer)
• Compressor: LG DC
• Power: 12V / 24V DC
• Power draw: approx. 80W
• Fridge temperature range: 0°C to 8°C
• Freezer temperature range: -12°C to -20°C
• Noise level: 45dB
• Dimensions (W x D x H): 485 x 455 x 790mm
• Net weight: 26kg
• Warranty: 2 years

Will the Sphere UCF83 run off my caravan batteries?

Yes. It runs on 12V or 24V DC and includes 3-stage battery protection that automatically shuts down before your house batteries are over-discharged, so it's well suited to off-grid and free-camping.

Can the door be hinged on the other side?

Yes — the door is reversible, so you can set it to open from whichever side best suits your layout.

How much power does it use?

It draws around 80W when the compressor is running. Actual daily consumption depends on ambient temperature, how full the fridge is and how often the door is opened.

Is it suitable for rough roads?

Yes. It uses shockproof construction designed for the vibration and corrugations of caravan and off-road touring.
