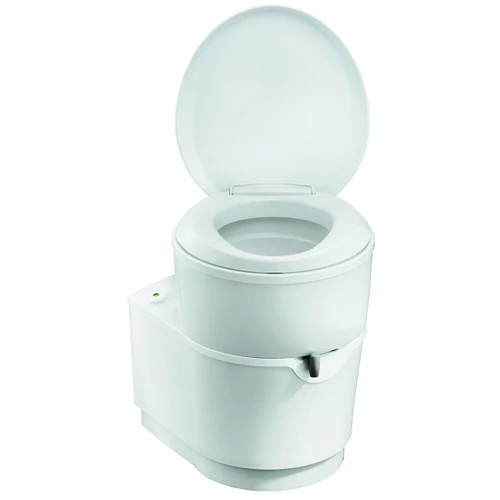

Thetford C223-S Cassette Toilet (No Console)

The Thetford C223-S is a permanently-mounted cassette toilet built around an 18-litre removable waste tank that is emptied via an external service door, so there's no need to access the bathroom from outside the vehicle. The bowl and seat swivel a full 180 degrees for tight bathroom layouts, and flushing is handled by a quiet 12V electric pump that gives full-bowl rinse coverage. This particular unit is the "no console" version of the C223-S, it is supplied as the toilet body and tank only, without Thetford's moulded plastic surround/cover panel that normally houses the flush button and level indicator. It is intended for caravan and motorhome builders or renovators who are fitting the toilet into their own custom cabinetry or an existing bathroom pod rather than using Thetford's standard console housing.

• Model: Thetford C223-S cassette toilet, No Console variant
• Manufacturer part number: 200864SP
• Waste cassette tank capacity: 18 litres
• Flush type: 12V electric flush pump
• Bowl: durable plastic, swivels 180°
• Standard C223-S body dimensions: approx. 495mm (H) x 365mm (W) x 580mm (D)
• Waste tank fitted with transport wheels for easier emptying
• Supplied without the flush console/cover panel, for OEM or custom installation
• External cassette access door sold separately

• Q: What does "no console" mean on this toilet?
  A: It means the toilet is supplied as the bowl and tank unit only, without Thetford's pre-moulded plastic cover/surround that normally hides the flush button and cassette level gauge. It's meant for installers building their own surround or cabinetry around the toilet.
• Q: Will this fit where my old C223-CS or C200 toilet was installed?
  A: The footprint is similar to other C220-series toilets, but because the console/cover is not included you will need to either reuse your existing surround (if compatible) or build a new one, so check your cavity and existing cover panel before ordering.
• Q: Do I need to buy anything else to install it?
  A: You'll need Thetford's external service door (sold separately) for cassette access, plus your own console/cover panel or cabinetry since none is supplied with this unit.
• Q: Is the flush electric or manual?
  A: Electric, the C223-S uses a 12V electric flush pump operated by a remote button, rather than a manual hand pump.
