Thetford S220 Separation Toilet Electric Ventilator Kit

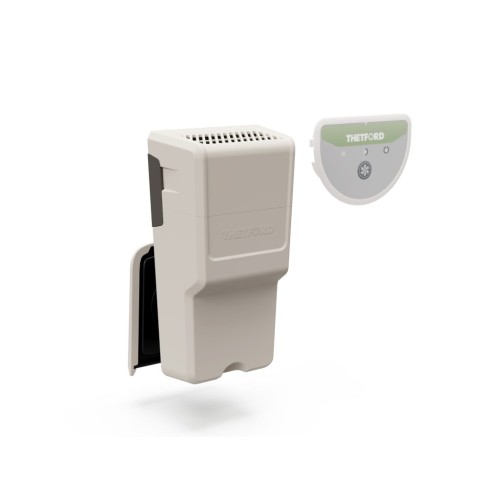

This active ventilation kit upgrades a Thetford S220 separation toilet with powered odour control. A 12V fan draws air from the solids container, creating negative pressure that pulls odours away at the source, then passes the air through a replaceable filter before venting it outside the vehicle. A simple wall-mounted control panel lets you switch the fan off, on, or into a boost setting for heavier use. It's also used on separation toilets converted from a standard C220 using Thetford's SK220 separation kit.

• Manufacturer part number: 212480
• Component type: 12V DC electric ventilator/fan kit with control panel
• Control settings: off / on / boost
• Includes replaceable filter housing (filter part 212485 fits both S220 and S260 versions)
• Compatible models: Thetford S220-S and S220-CS separation toilets
• Also fits: Thetford C220 toilets converted with an SK220 separation kit

• Q: Does this fit a standard C220 cassette toilet?
  A: Only if it has been converted into a separation toilet using Thetford's SK220 separation kit, it will not fit a standard, unconverted C220.
• Q: What does the "boost" setting do?
  A: It runs the fan at a higher speed for stronger odour extraction during or after use, compared with the standard "on" setting.
• Q: Do I need to buy a filter separately?
  A: The kit includes the filter housing; a replacement filter (part 212485) is a separate consumable for ongoing servicing.
• Q: Is this a 12V or mains-powered fan?
  A: It's a 12V DC fan designed to run from your caravan or motorhome's leisure battery system.
