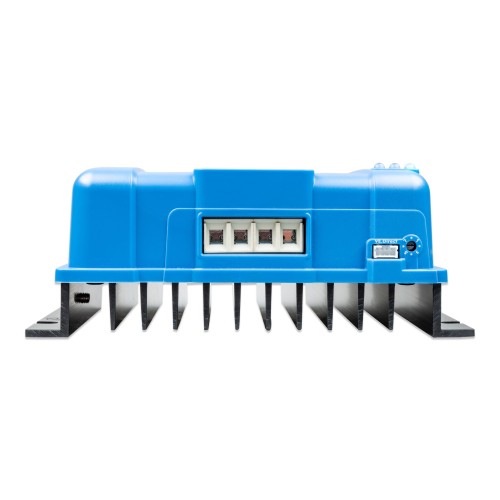

Victron BlueSolar 100V/30A MPPT Solar Charge Controller

The Victron BlueSolar 100V/30A MPPT solar charge controller uses ultra-fast Maximum Power Point Tracking to harvest more energy from your solar panels, even under clouds or partial shade. This model does not have built-in Bluetooth.

Features

• Ultra-fast MPPT improves energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers, especially under changing cloud
• Advanced MPP detection finds the optimum power point under partial shading
• Fully programmable charge algorithm plus eight pre-programmed algorithms selectable with a rotary switch
• Internal temperature sensor compensates absorption and float charge voltage
• Real-time data via ColorControl GX or other GX devices, or a smartphone with the VE.Direct Bluetooth Smart dongle (needed)
• 12/24V battery voltage (auto-select); 30A rated charge current; 100V maximum PV open circuit voltage
• Peak efficiency 98%, no cooling fan; full output current up to 40°C
• Protected against PV reverse polarity, output short circuit and over-temperature
• Weighs 1.3kg; 130 × 186 × 70 mm

Battery voltage: 12/24V Auto Select
Rated charge current: 30A
Nominal PV power, 12V: 440W
Nominal PV power, 24V: 880W
Maximum PV open circuit voltage: 100V
PV short circuit current: 35A
Maximum efficiency: 98%
Self-consumption 12V: 30 mA, 24V: 20 mA
Charge voltage 'absorption': Default setting: 14,4V / 28,8V (adjustable)
Charge voltage 'float': Default setting: 13,8V / 27,6V (adjustable)
Charge algorithm: multi-stage adaptive
Temperature compensation: -16 mV / °C resp. -32 mV / °C
Operating temperature: -30 to +60°C (full rated output up to 40°C)
Humidity: 95%, non-condensing
Data communication port: VE.Direct See the data communication white paper on our website
ENCLOSURE
Colour: Blue (RAL 5012)
Power terminals: 16 mm² / AWG6
Protection category: IP43 (electronic components), IP22 (connection area)
Weight: 1,3 kg
Dimensions (h x w x d) 130 x 186 x 70 mm
