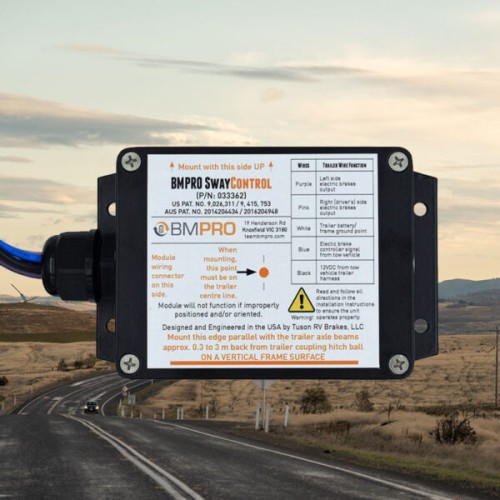

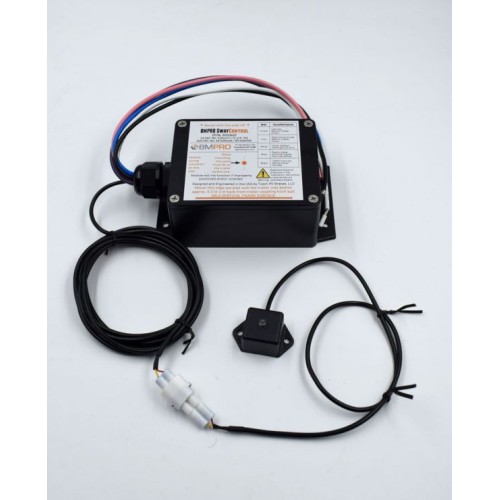

BMPro Sway Control

The BMPRO SwayControl is an advanced electronic stability system designed to automatically correct and stabilize your caravan or trailer when sway is detected. Engineered to enhance towing safety, the unit continuously monitors trailer yaw and is quick to respond when changing road conditions, driver error, lateral winds, or passing trucks cause unwanted movement. By independently actuating the left and right brakes with precise closed-loop feedback, BMPRO SwayControl delivers targeted corrective force exactly where it’s needed—all without requiring driver intervention.

Features

• Automatic Sway Correction: Detects and corrects trailer sway without driver intervention.
• Independent Brake Control: Applies braking force to the necessary side of the trailer.
• Continuous Monitoring: Monitors trailer yaw to detect sway in real time.
• Durable Design: Mounted on the underside of the caravan/trailer chassis for optimal performance

• System Voltage: 12V - 15V
• Power Source: Caravan / Trailer House Battery, At least 50 Ahr
• Dimensions (mm): 55 x 89 x 146
• Sleep mode: Activates after 30 minutes of inactivity
• Current Draw (Sleep Mode): Approximately 35 mA ±2%
• Wake-Up Mode: Triggered by a brake controller signal or position change
• Preprogramming: Not required (factory preconfigured)
• Auto System Disable (ASD): Yes; automatic off-road deactivation with a 5-second redetect interval
• Level Adjustment: Fully automatic
• Braking Levels: Independently applied for left/right trailer brakes
• Maintenance: Nil
• Status Indicator: LED
