Ekon Quick Release Two Arm TV Bracket

Sphere Ekon Quick Release Two Arm TV Bracket – Fast Fit, Safe Travel

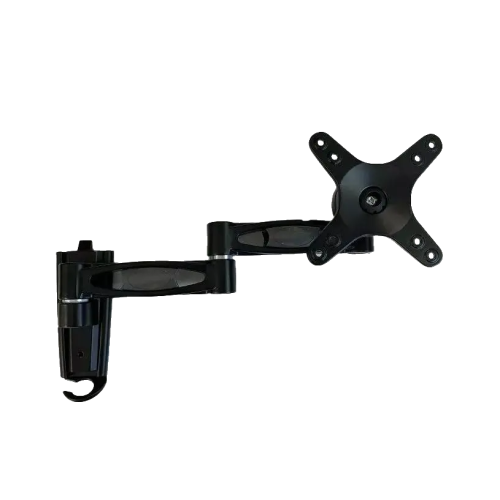

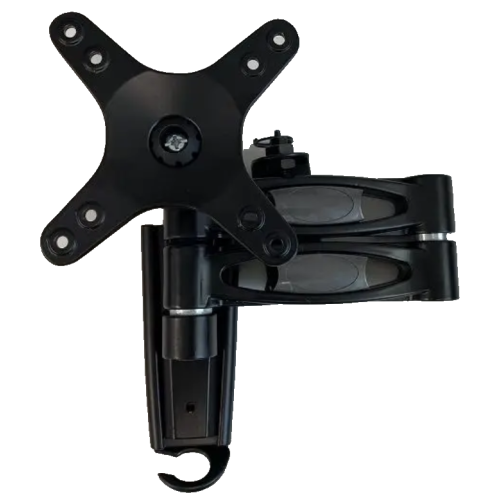

The Sphere Ekon Quick Release bracket is purpose-built for caravan use — it holds your TV securely while driving and releases it in seconds when you want to adjust the viewing angle at camp. The two-arm design extends the TV up to 385mm from the wall with full pan, swivel and tilt, so you get a clear view from anywhere in the van.

The quick-clip, pin-lockable release mechanism means you can remove the TV entirely for storage or security when leaving the van unattended — removing the TV is a simple, tool-free operation, and a built-in level plus cord-management clips make setup tidy and straightforward.

Key Features

• Quick-clip, pin-lockable release — remove or reattach the TV in seconds without tools
• Two-arm articulating design extends up to 385mm with 360° rotation and 120° swivel
• 13.8° tilt up and down for the perfect viewing angle from any seat in the van
• Secure travel lock holds the TV firmly in place during towing — no rattle or movement

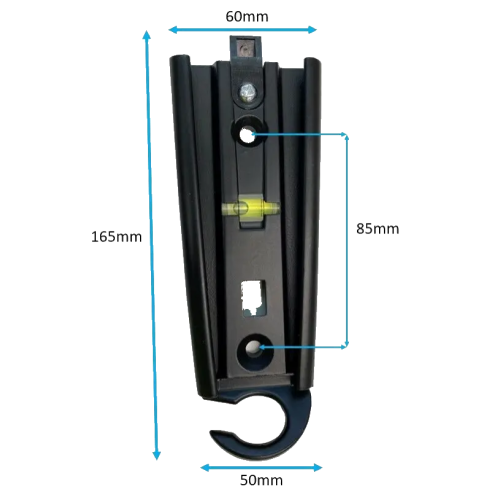

• Built-in level and cord-management clips for a clean, accurate installation

Brand Quality Sphere is a trusted name in RV entertainment hardware, and the Ekon range is built specifically for the demands of caravan and motorhome travel — strong, reliable, and easy to use.

Brand: Sphere (Ekon range)

Type: Quick release two-arm articulating TV bracket

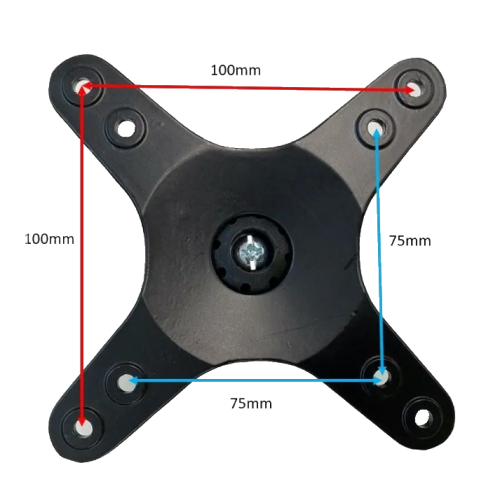

VESA Mount Pattern: 100mm x 100mm (max)

Weight Capacity: Up to 15kg

TV Size Compatibility: Up to 26 inches

Arm Extension: Up to 385mm when fully extended

Movement: 360° rotation, 120° swivel, 13.8° tilt up and down

Application: Caravan and motorhome 12V TV mounting

Q: Does the price include GST?
A: Yes, all prices shown on the site include GST.

Q: Do you ship NZ-wide?
A: Yes, we ship throughout New Zealand.

Q: How do I know this bracket will fit my TV?
A: Check that your TV has a 100mm x 100mm (or smaller) VESA mounting pattern on the back, weighs 15kg or less, and is up to 26 inches in size. If you're unsure of your TV's VESA pattern or weight, contact us and we'll help confirm it's a good fit.

Q: What's the warranty on this bracket?
A: Please contact us for current manufacturer warranty details on this product.

Q: Is this compatible with Avtex and Alphatronics TVs?
A: Yes. Both Avtex and Alphatronics caravan TVs typically use a standard 100mm x 100mm VESA mount, which is compatible with this bracket.

Q: How does the quick release feature work?
A: The bracket uses a quick-clip, pin-lockable mounting plate. Once the TV is clipped on, the pin locks it in place for travel; to remove the TV, simply release the pin and lift it off — no tools required.

Q: Can I adjust the viewing angle once parked?
A: Yes. The two-arm design gives 360° rotation, 120° swivel and 13.8° tilt, so you can angle the screen for comfortable viewing from any seat, then fold it back and lock it for the drive.
